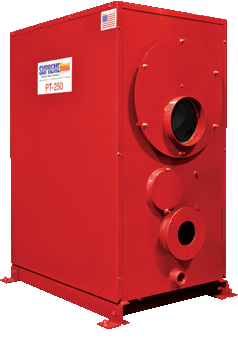

PT Series Waste Oil Boiler |
| |
| . |
The disposal of motor oils and petroleum based fluids from commonly used internal
combustion engines has traditionally been a burden. The effects of improper disposal
can be devastating to the environment. One quart of waste oil can pollute over 250,000
gallons of water, and cleanup is next to impossible. Waste oil is toxic and carcinogenic
and can be a fire hazard if not properly disposed of. |
| |
The PT Series Waste Oil Heating System is an economical alternative to higher end
waste oil systems. The PT Series is a great option for smaller businesses desiring to
convert the burden of waste oil disposal from a liability to a bottom line enhancing asset.
The double savings from eliminated disposal costs and free heat and hot water for your
business give you a high return on your investment. The reputation of AHS for quality
heating systems will allow you to reap these savings for years to come. |
| |
| |
| |
Features of the PT Series Heating System |
- Heavy duty construction
- ASME stamped and National Board listed

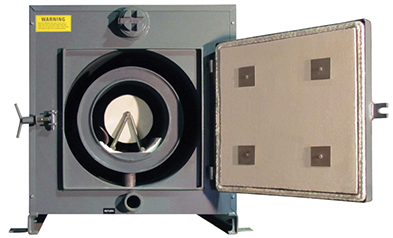

- Large access port for easy access to burner end and flame viewing
- Oversized heat exchanger delivers efficient operation during continuous use

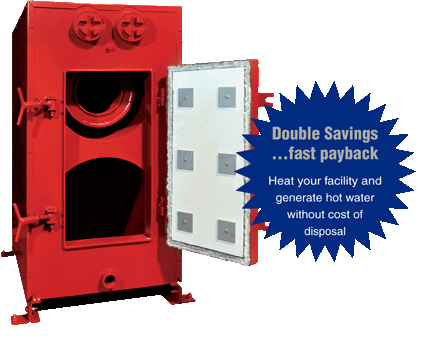

- Large access doors provide easy access to all parts of the boiler for maintenance
and cleaning
- Refractory lined combustion chamber and flame shield house an insulated
combustion zone capable of withstanding high temperatures
- Boilers and storage tanks can be custom made for your special applications
- 10 year limited warranty
|
|
|
| |
|
Fueled by a variety of
petroleum products: |
- Crankcase oil
- Transmission fluid
- Hydraulic fluid
- Fuel oil
|
| |
 |
|
|
Model |
PT-250 |
PT-500 |
Waste oil GPH (approximate) |
1.8 |
3.4 |
 |
Gross BTUH (approximate) |
250,000 |
475,000 |
|
Heating surface, fireside (square feet) |
43 |
72 |
|
Furnace volume (gallons) |
80 |
120 |
|
Minimum relief valve capacity |
462,000 |
1,428,000 |
|
Number of heat exchanger tubes |
1–17" and 1–8" |
1–17 " and 1–8 " |
|
Boiler dimensions |
45" L x 27" W x 55" H |
70" L x 27" W x 5'5" H |
|
Shipping weight (approximate) |
1450 |
1900 |
|
|
| |
Options include: |
- Domestic hot water coils
- Low water cutoff
|
| |
Multiple machines can be installed
in tandem for higher BTU output. |
| |
|
| |
|
| |
|
|
|
EPA approved for recycling used oil |
On-site recycling can enhance your bottom line. It’s the preferred method of reusing
materials and avoiding liability. |
Built by dedicated American craftsmen in Harrisonville, Pennsylvania, USA |
|

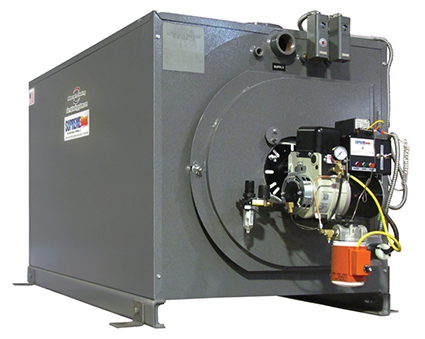

High Tech Burner Unit |
Supreme Heat’s high tech burners
are the most combustion efficient
on the market. |
| |
| |
| |
